DesignWorks is a schematic capture package for Macintosh and Windows platforms. It is a very reliable and versatile tool. I have included a Vacuum Tube library. The library contains standard tube layouts (such as triode, pentode, etc.). It also contains tube components (such as plate, grid, cathode, etc.). Click on the image above to go to Capilano Computing's home page to fine out more about DesignWorks. To install the library, click on the Download button below. From DesignWorks, you can open it using the Open Lib... command in the Libraries sub-menu of the File menu.

Download K6MAY Vacuum Tube Library for Windows

Download K6MAY Vacuum Tube Library for Macintosh

Version 1.0 - Copyright © 2004. John May, K6MAY. All Rights Reserved
K6MAY has no responsibility for and personal injury, property damage, or loss of data which may result from installation or use of this Vacuum Tube Library. The Library is provided "as is". K6MAY offer's no support for this library.
All rights reserved.
This library may not be reproduced, stored in a retrieval system or transmited, in any form or by any means, electronic, mechanical, photocopying, recording or otherwise, without the prior permission of K6MAY. This downloadable copy of this library is provided for personal use only.

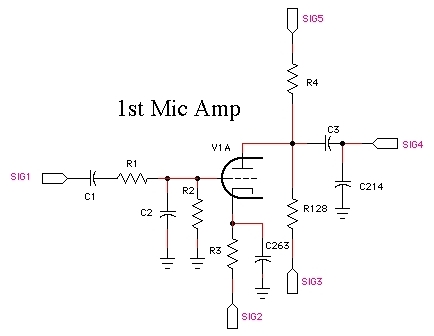

Collins KWM-2 1st Mic Amplifier using DesignWorks

K6MAY Vacuum Tube Library

Diode

Diode w/ heater

Diode-RH

Diode-LH

Diode-RH w/ heater

Diode-LH w/ heater

Diode-Dual

Diode-Dual w/ heater

Rectifier

Rectifier-Gas

Rectifier-Full Wave

Triode

Triode w/ heater

Triode-RH

Triode-LH

Triode-RH w/ heater

Triode-LH w/ heater

Triode-Plate Cap

Triode-Plate Cap w/ heater

Triode-Dual

Triode-Dual w/ heater

Triode-Dual w/ heater CT

Thyratron

Thyratron w/ heater

Tetrode

Tetrode w/ heater

Tetrode-Plate Cap

Tetrode-Plate Cap w/ heater

Tetrode-RH

Tetrode-RH w/ heater

Tetrode-LH

Tetrode-LH w/ heater

Pentode

Pentode w/ heater

Pentode-Plate Cap

Pentode-Plate Cap w/ heater

Pentode-RH

Pentode-RH w/ heater

Pentode-LH

Pentode-LH w/ heater

Pentode-Sup/Cath

Pentode-Sup/Cath w/ heater

Beam Power

Beam power w/ heater

Phototube

CRT

Envelope 1

Envelope 2

Envelope-RH

Envelope-LH

Heater-Small

Heater w/ CT

Heater-Large

Plate-Large

Plate-Small

Cathode-Large

Cathode-Small

Gas Cathode

Photo Cathode

Grid-Left

Grid-Right

Grid-Large-Left

Grid-Large-Right

Beam-Left

Beam-Right

Gas Dot

Plate Cap

Grid/Cathode Connector
